Description
Description
Entry-level OULIDE mini excavator — 860 kg operating weight with retractable tracks for transport and tight-access work. 1.68 m maximum dig depth makes this an ideal first machine for residential landscaping, pool installations and small site work.
Key Specifications
- Load Capacity / Operating Weight: 860 kg operating weight
- Engine: 192FA petrol engine
- Construction: Steel chassis with retractable tracks
- Included: Standard bucket, manual
Technical Specifications
| Item | Unit | Value |
|---|---|---|
| Overall dimensions (L x W x H) | mm | 2600 x 850 x 1480 |
| Operating weight | kg | 860 |
| Bucket capacity | m³ | 0.02 |
| Engine model | - | 192FA |
| Displacement | L | 0.499 |
| Rated output | kW/rpm | 7 / 3000 |
| Swing speed | r/min | 11 |
| Travel speed | km/h | 1.8 |
| Boom swing angle (L/R) | ° | 56 / 55 |
| Gradeability | % (°) | 58 (30) |
| Ground pressure | kPa | 20 |
| Bucket digging force | kN | 6.2 |
| Fuel tank capacity | L | 5.5 |

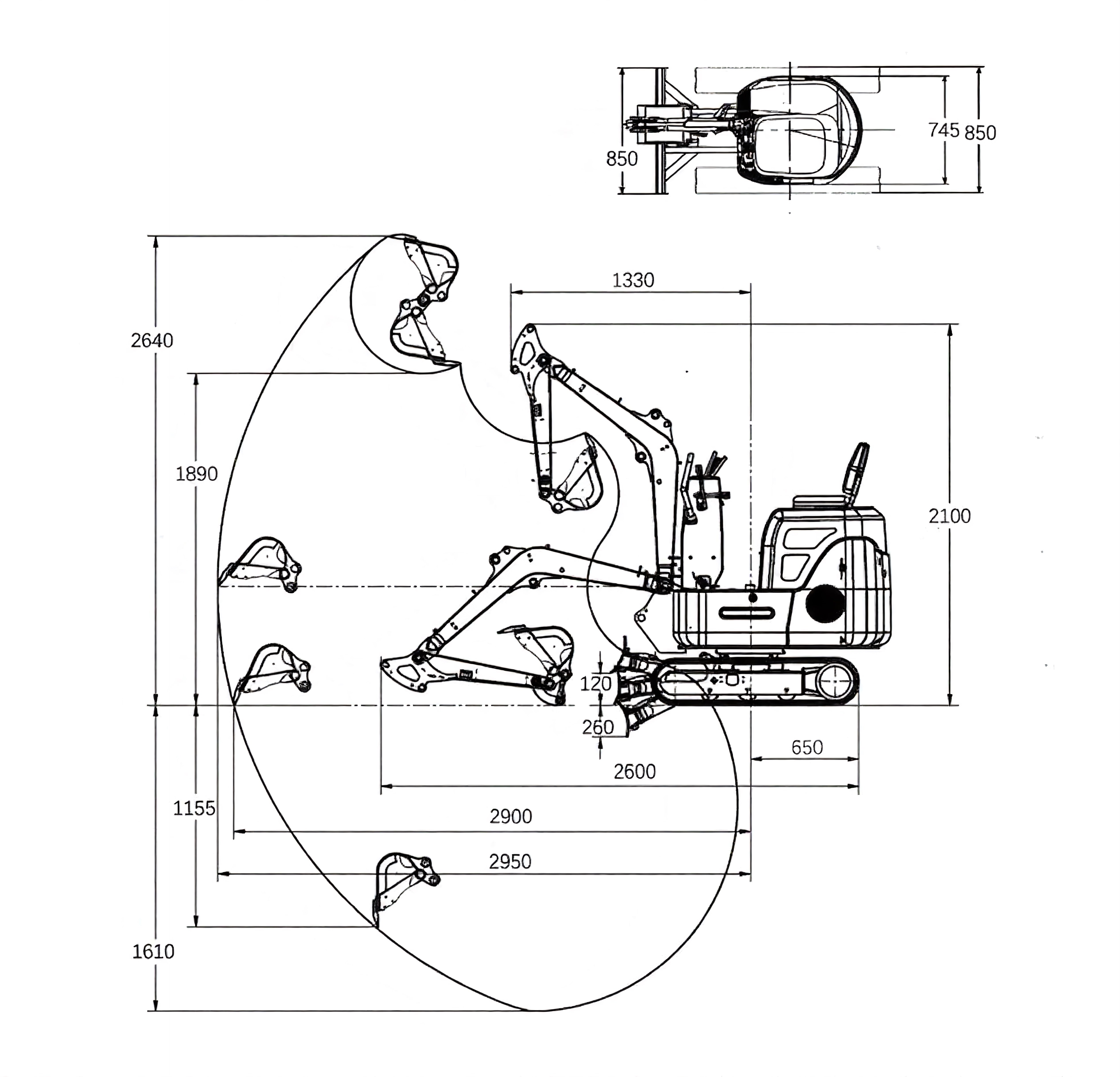

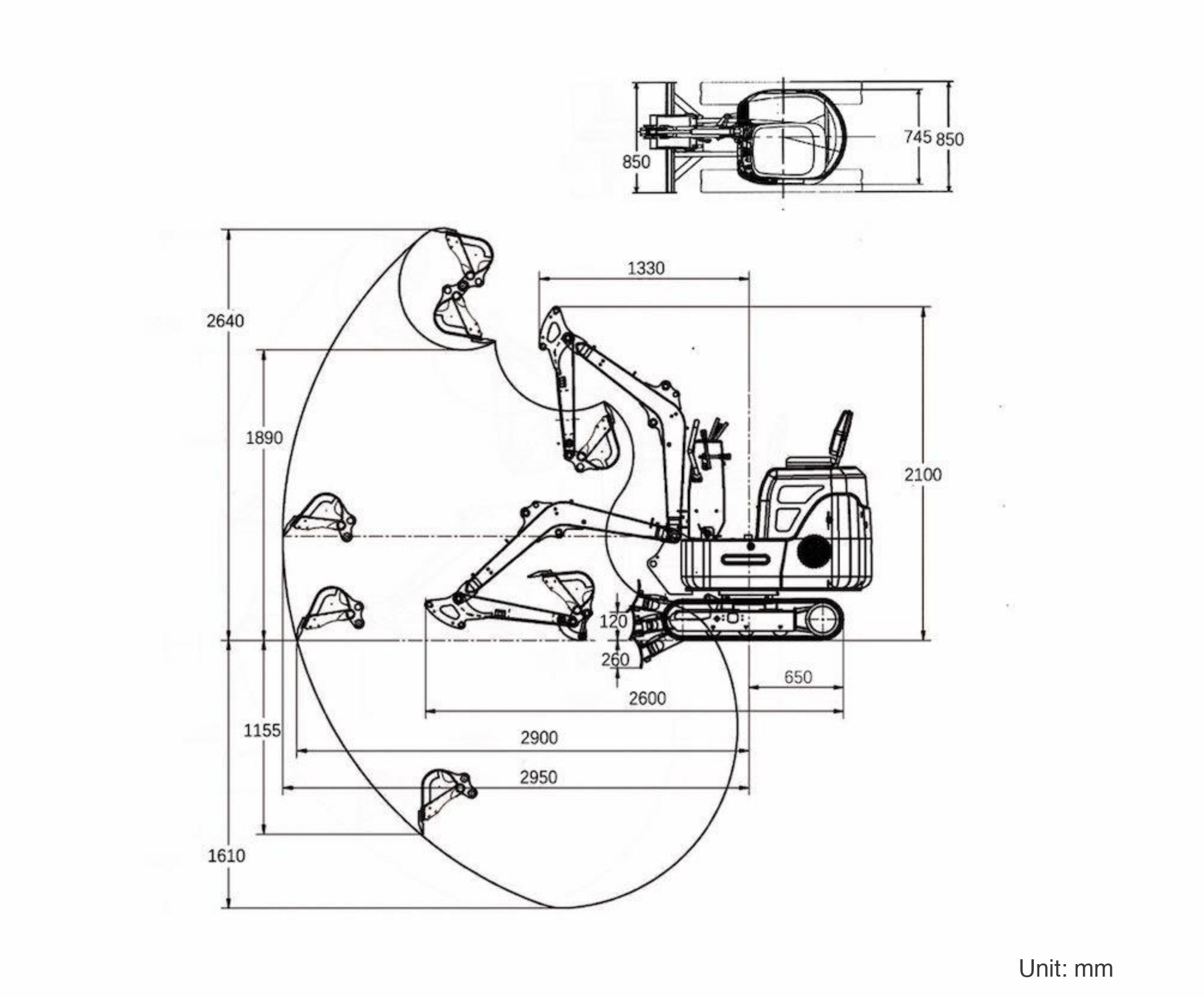

Working Range
| Item | Unit | Value |
|---|---|---|
| Maximum digging height | mm | 2640 |
| Maximum dumping height | mm | 1890 |
| Maximum digging depth | mm | 1680 |
| Maximum vertical digging depth | mm | 1155 |
| Maximum digging radius | mm | 2950 |
| Maximum ground-level digging radius | mm | 2900 |
| Minimum front swing radius | mm | 1330 |
| Swing centre to track rear end | mm | 650 |
| Dozer blade width | mm | 850 |
| Dozer blade height | mm | 216 |
| Maximum dozer lift height | mm | 120 |
| Maximum dozer digging depth | mm | 260 |
