OULIDE SL15-6 Mini Excavator - 1.28T, Kubota D722 Diesel, 2.23m Dig Depth
Hurry up, only 4 items left in stock.
Extra 5% off with code EOFY05 at checkout
Couldn't load pickup availability
Description
Description

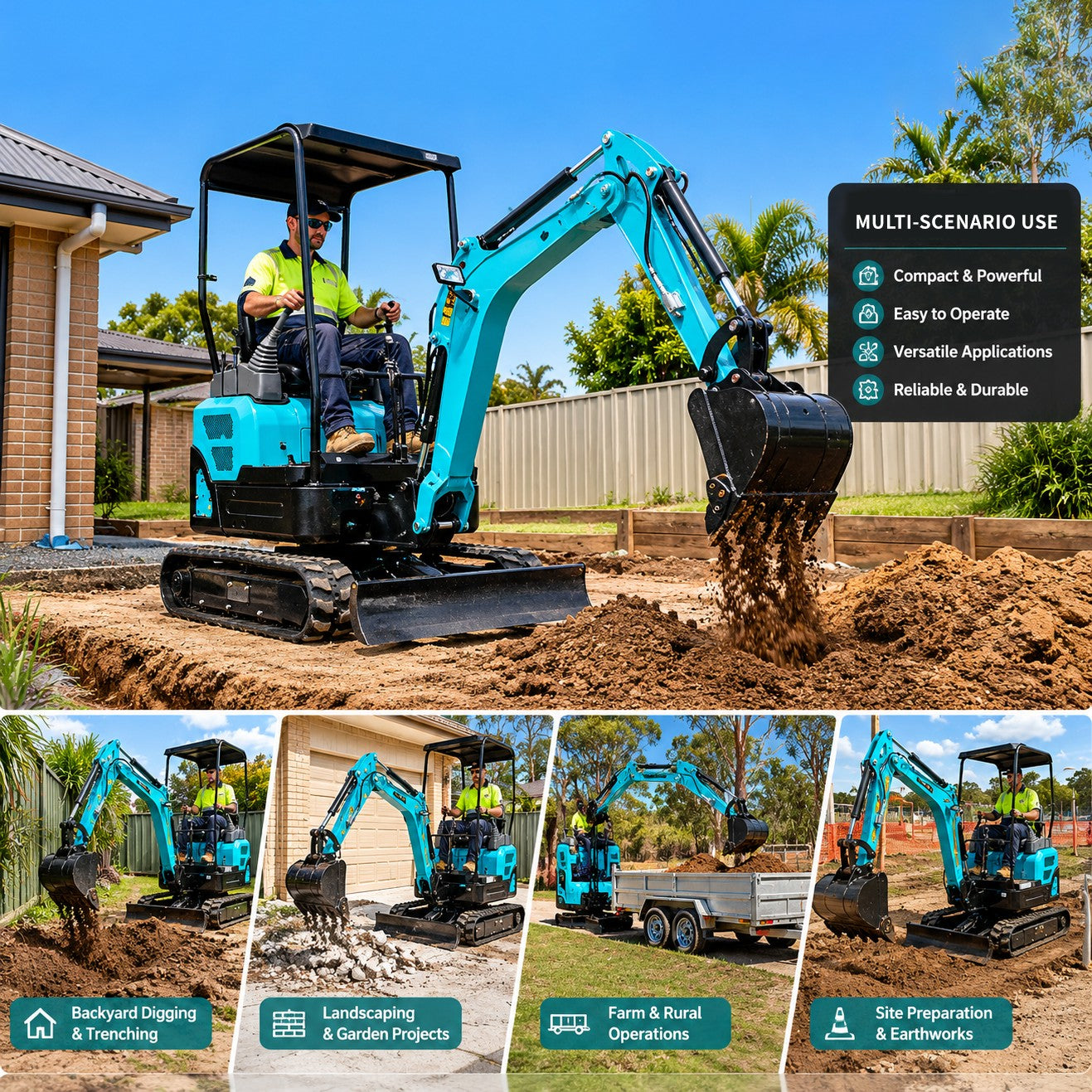

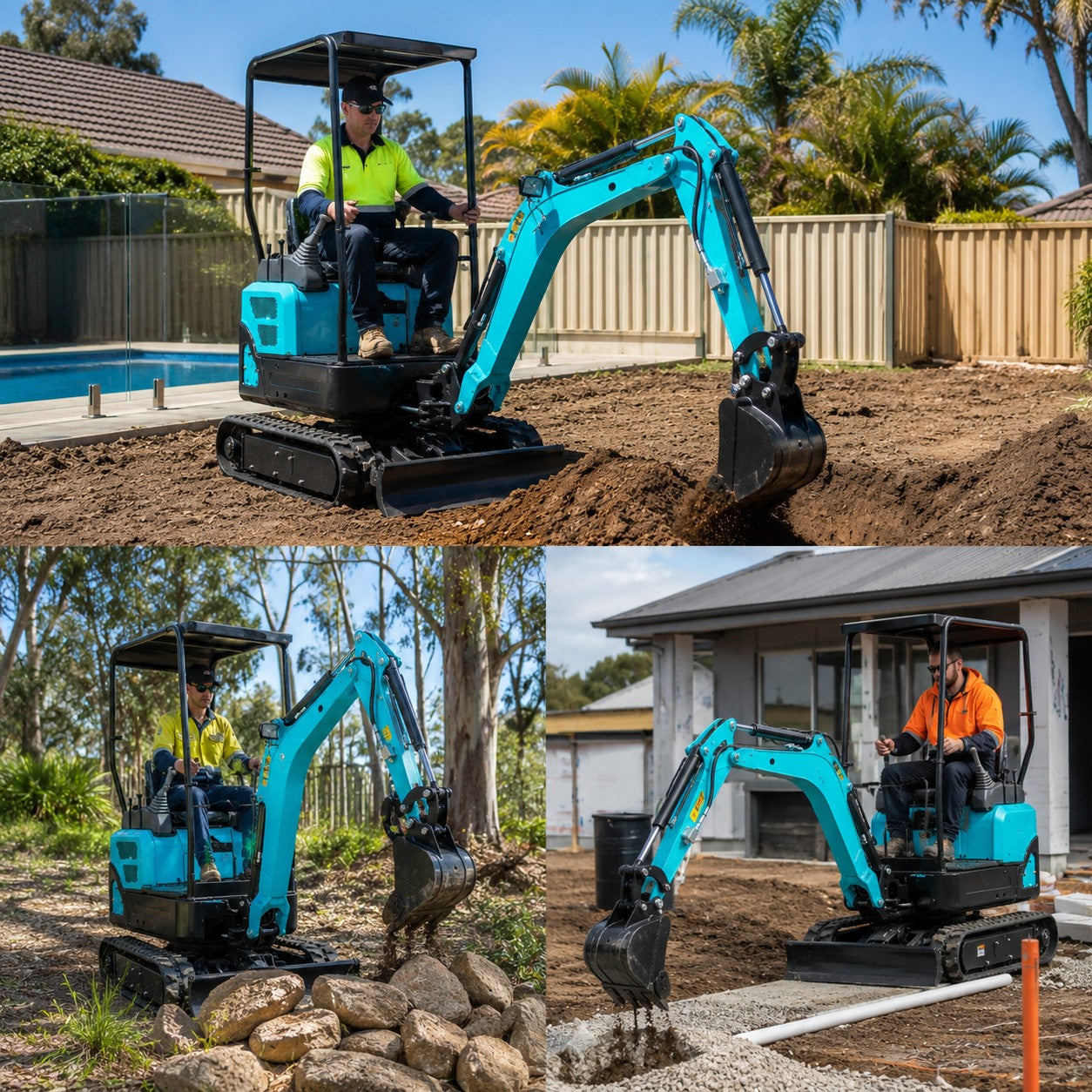

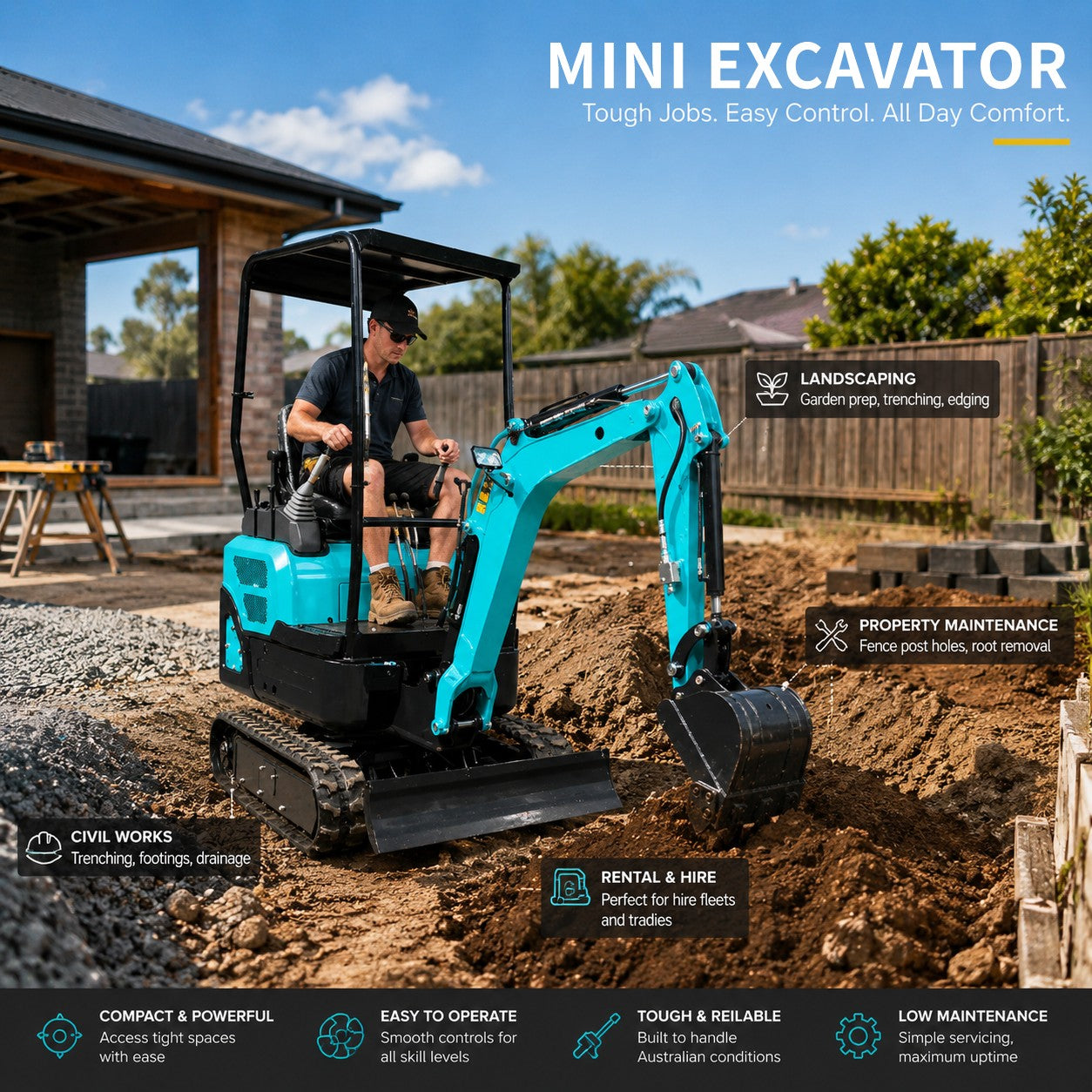

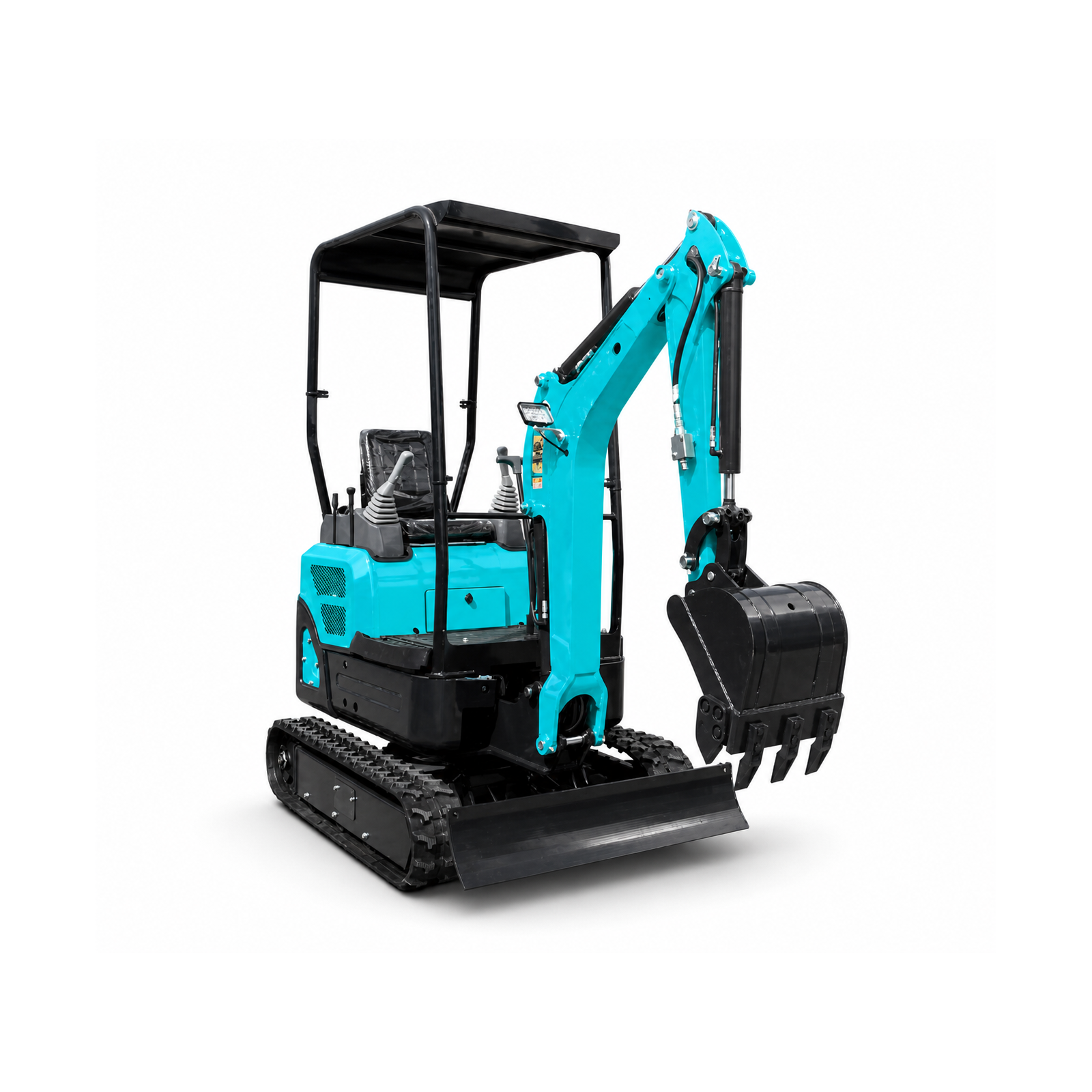

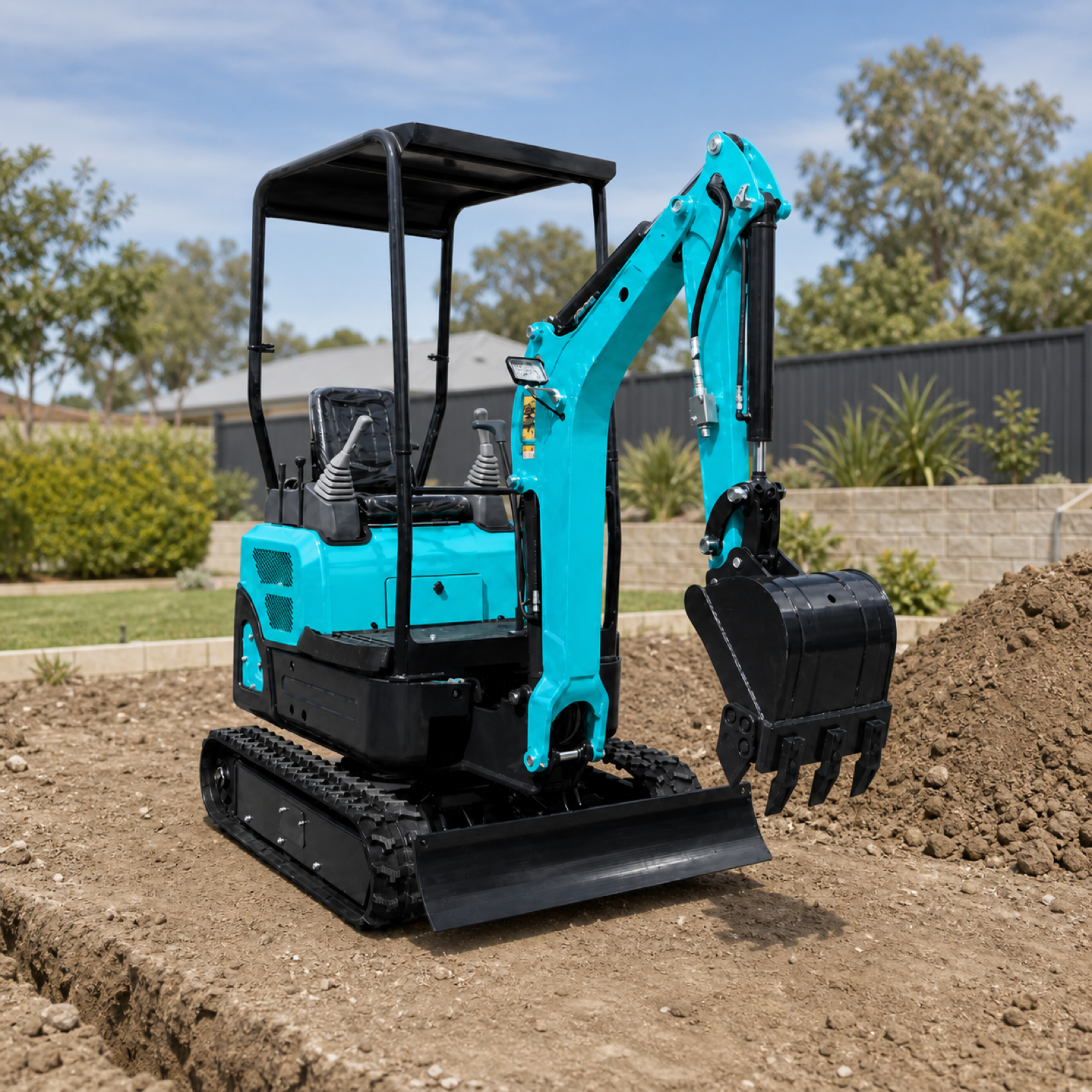

1.28 tonne OULIDE mini excavator with Kubota D722 diesel engine — combining the strong 2.23 m dig depth of the SL15 with diesel reliability and lower fuel costs. Suited to daily contractor use.
Key Specifications
- Load Capacity / Operating Weight: 1,280 kg operating weight
- Engine: Kubota D722 diesel
- Construction: Steel chassis
- Included: Standard bucket, manual
Technical Specifications
| Item | Unit | Value |
|---|---|---|
| Overall dimensions (L x W x H) | mm | 3070 x 1100 x 2210 |
| Operating weight | kg | 1280 |
| Bucket capacity | m³ | 0.02 |
| Engine model | - | D722-E4B-CBH-2 |
| Displacement | L | 0.719 |
| Rated output | kW/rpm | 10.2 / 2500 |
| Swing speed | r/min | 11 |
| Travel speed | km/h | 2 |
| Boom swing angle (L/R) | ° | 56 / 55 |
| Gradeability | % (°) | 58 (30) |
| Ground pressure | kPa | 20 |
| Bucket digging force | kN | 6.5 |
| Fuel tank capacity | L | 15.5 |

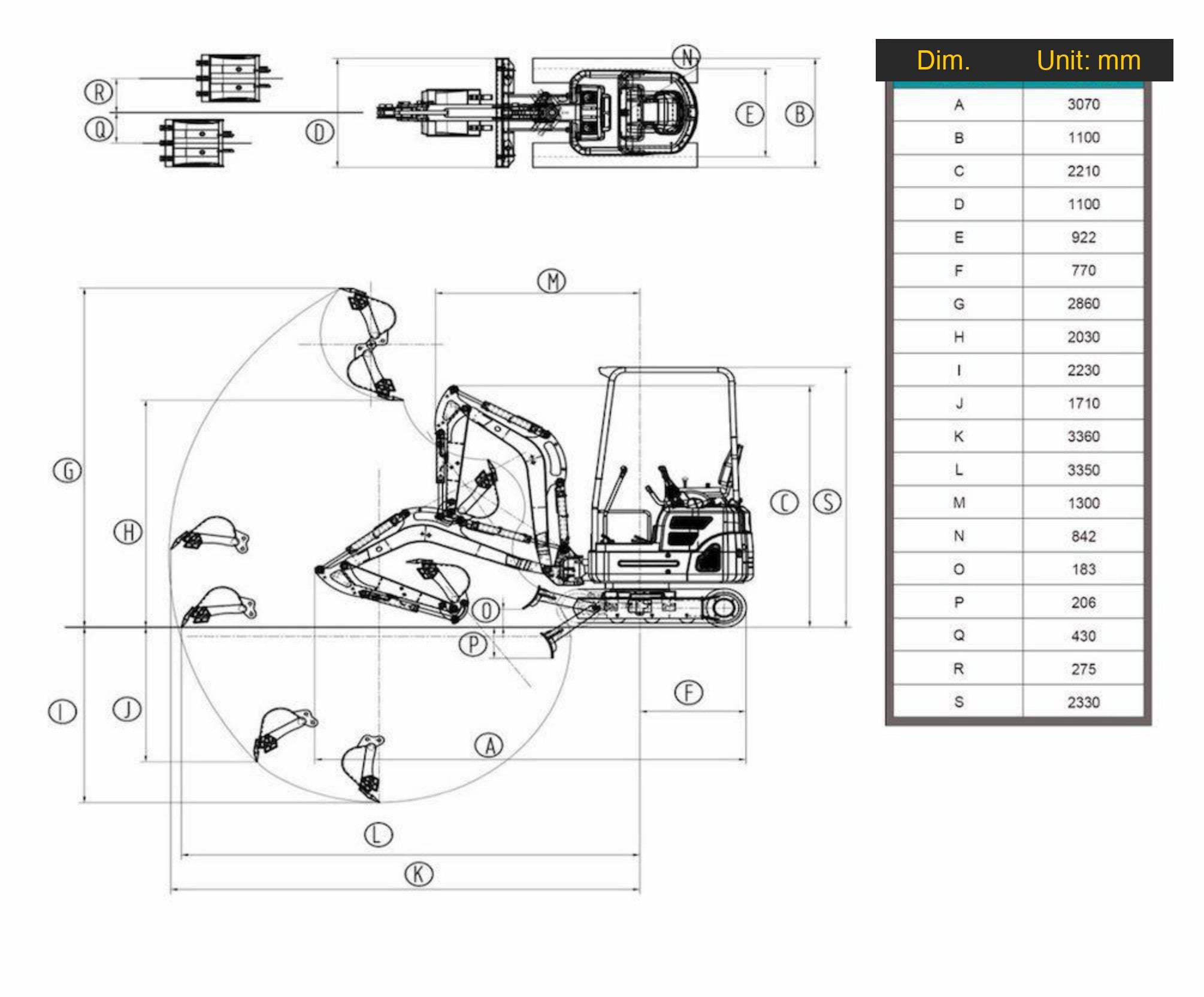

Working Range
| Item | Unit | Value |
|---|---|---|
| Maximum digging height | mm | 2860 |
| Maximum dumping height | mm | 2030 |
| Maximum digging depth | mm | 2230 |
| Maximum vertical digging depth | mm | 1710 |
| Maximum digging radius | mm | 3360 |
| Maximum ground-level digging radius | mm | 3350 |
| Minimum front swing radius | mm | 1300 |
| Swing centre to track rear end | mm | 770 |
| Dozer blade width | mm | 1100 |
| Dozer blade height | mm | 216 |
| Maximum dozer lift height | mm | 183 |
| Maximum dozer digging depth | mm | 206 |
