OULIDE SL20 Mini Excavator - 1.7T, Kubota D902 Diesel, 13.8kN, 2.38m Dig Depth
$26,124.05
Your checkout price — 5% off applied automatically
Offer ends in
--Days
--Hours
--Mins
--Secs
Available in stock
Black Friday Early Access Now Live!
Extra 5% off — applied automatically in your cart and at checkout. No code needed.
Delivery cost
Fast Metro Deliveryto Metro Area
Nationwide ShippingTracked & insured
Fast DispatchWithin 1 – 3 days
30-Day ReplacementIf damaged or faulty
Trusted CouriersAllied · Hunter Express
Sydney ShowroomSilverwater, NSW
Payment & Security
Payment methods
Couldn't load pickup availability
Description
Description
1.7 tonne OULIDE mini excavator with Kubota D902 diesel — 13.8 kN bucket force and 2.38 m dig depth. A versatile mid-class machine for landscaping firms, pool builders and rural property maintenance.
Key Specifications
- Load Capacity / Operating Weight: 1,700 kg operating weight
- Engine: Kubota D902 diesel
- Construction: Steel chassis
- Included: Standard bucket, manual
Technical Specifications
| Item | Unit | Value |
|---|---|---|
| Overall dimensions (L x W x H) | mm | 2600 x 1115 x 2230 |
| Operating weight | kg | 1700 |
| Bucket capacity | m³ | 0.04 |
| Engine model | - | D902-E4B-CBH-1 |
| Displacement | L | 0.898 |
| Rated output | kW/rpm | 11.8 / 2300 |
| Swing speed | r/min | 10 |
| Travel speed | km/h | 2 / 3.5 |
| Boom swing angle (L/R) | ° | 60 / 50 |
| Gradeability | % (°) | 58 (30) |
| Ground pressure | kPa | 26 |
| Bucket digging force | kN | 13.8 |
| Fuel tank capacity | L | 18 |

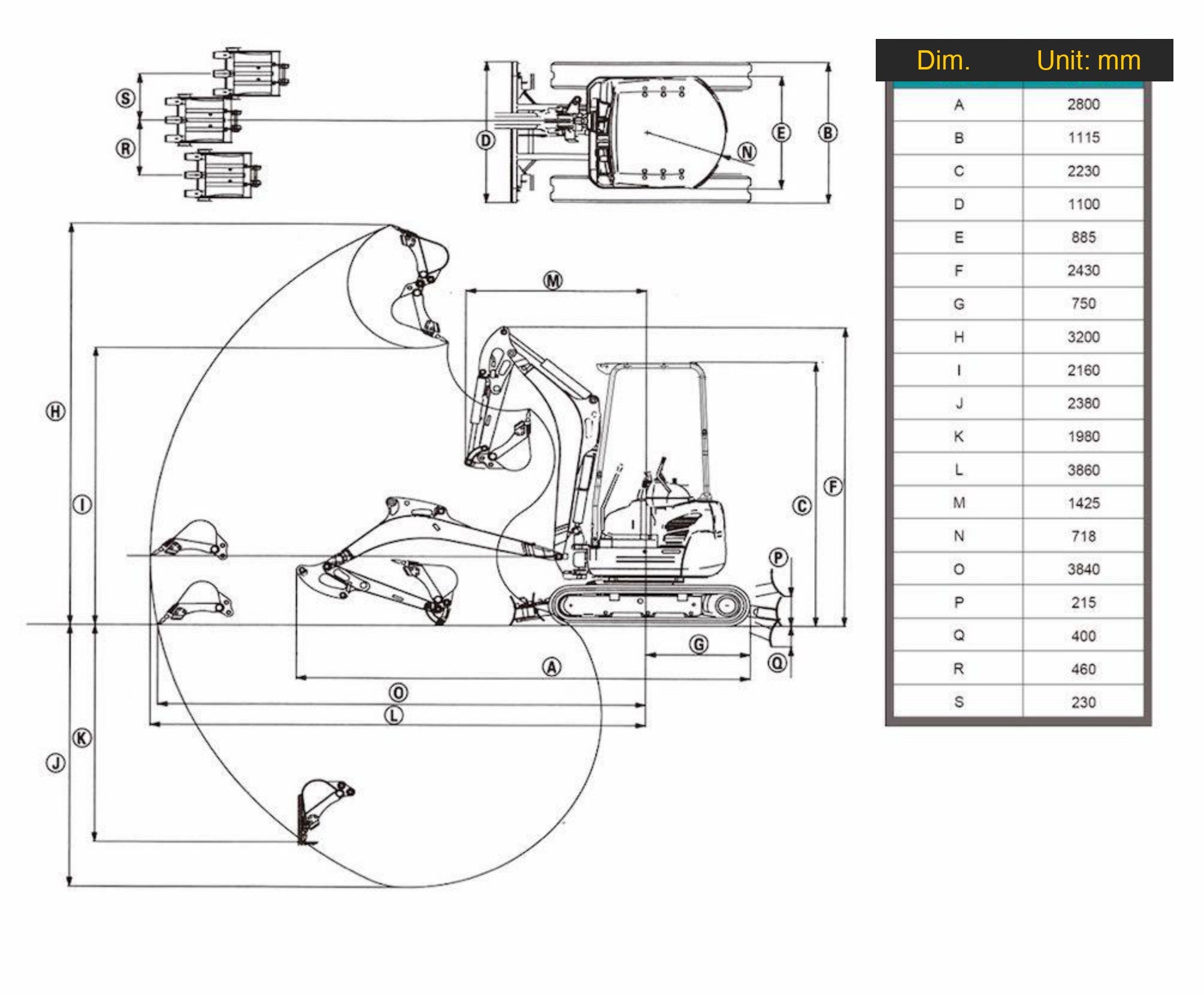

Working Range
| Item | Unit | Value |
|---|---|---|
| Maximum digging height | mm | 3200 |
| Maximum dumping height | mm | 2380 |
| Maximum digging depth | mm | 2380 |
| Maximum vertical digging depth | mm | 1980 |
| Maximum digging radius | mm | 3860 |
| Maximum ground-level digging radius | mm | 3840 |
| Minimum front swing radius | mm | 1425 |
| Swing centre to track rear end | mm | 750 |
| Dozer blade width | mm | 1115 |
| Dozer blade height | mm | 258 |
| Maximum dozer lift height | mm | 215 |
| Maximum dozer digging depth | mm | 402 |
