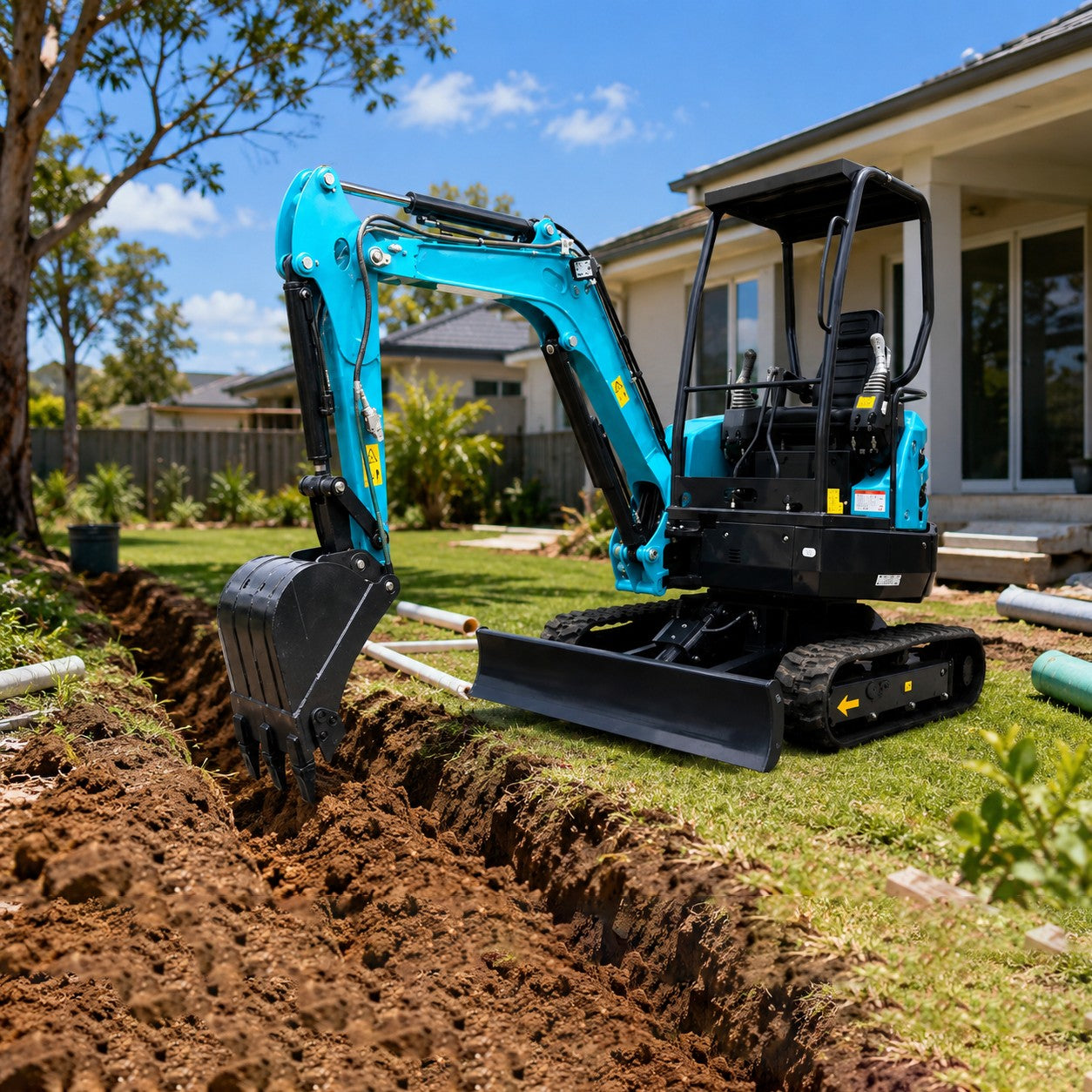

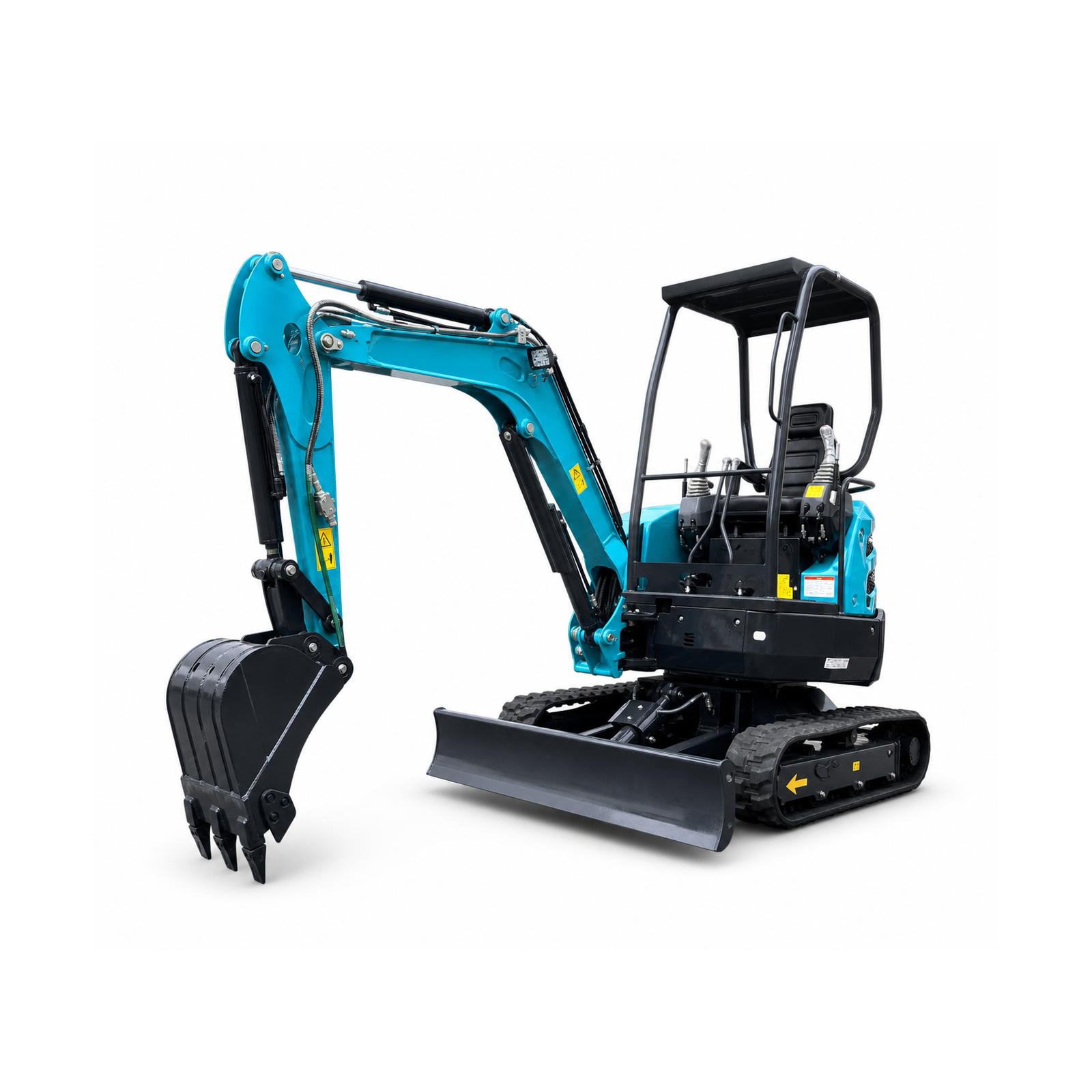

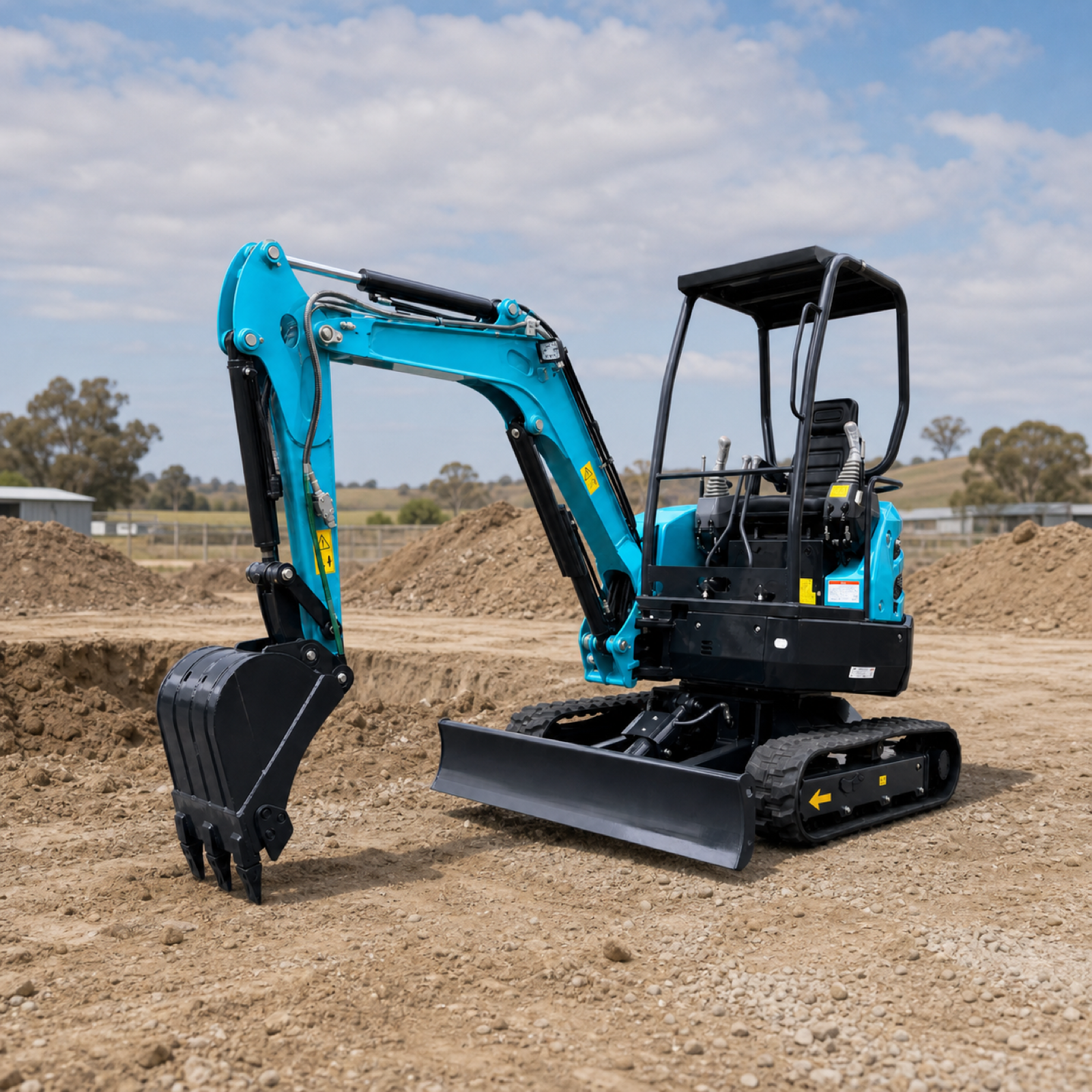

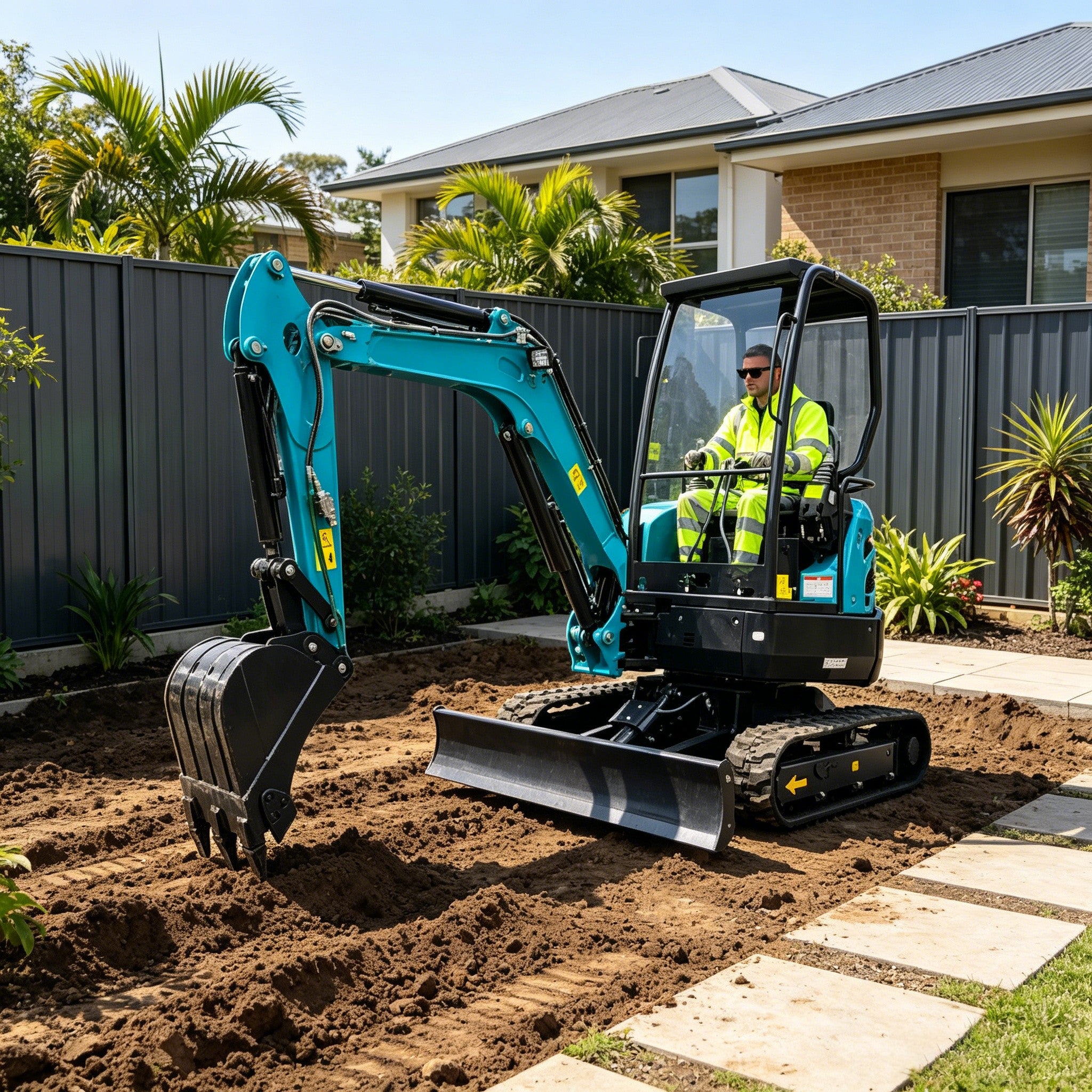

OULIDE SL30-6P Mini Excavator - 2.85T, Kubota D1703 Diesel, 26.5kN, 2.78m Dig Depth
Hurry up, only 4 items left in stock.
Extra 5% off with code EOFY05 at checkout
Couldn't load pickup availability
Description
Description
2.85 tonne OULIDE mini excavator powered by a Kubota D1703 diesel — 26.5 kN bucket force and 2.78 m dig depth. The Kubota D1703 delivers smooth operation and strong sustained power for demanding commercial use.
Key Specifications
- Load Capacity / Operating Weight: 2,850 kg operating weight
- Engine: Kubota D1703 diesel
- Construction: Steel chassis
- Included: Standard bucket, manual
Technical Specifications
| Item | Unit | Value |
|---|---|---|
| Overall dimensions (L x W x H) | mm | 4150 x 1500 x 2425 |
| Operating weight | kg | 2850 |
| Bucket capacity | m³ | 0.07 |
| Engine model | - | V1505-E4B-CWL-1 |
| Displacement | L | 1.498 |
| Rated output | kW/rpm | 18.2 / 2200 |
| Swing speed | r/min | 8.5 |
| Travel speed | km/h | 3.0 / 4.2 |
| Boom swing angle (L/R) | ° | 70 / 50 |
| Gradeability | % (°) | 58 (30) |
| Ground pressure | kPa | 28 |
| Bucket digging force | kN | 26.5 |
| Fuel tank capacity | L | 43 |

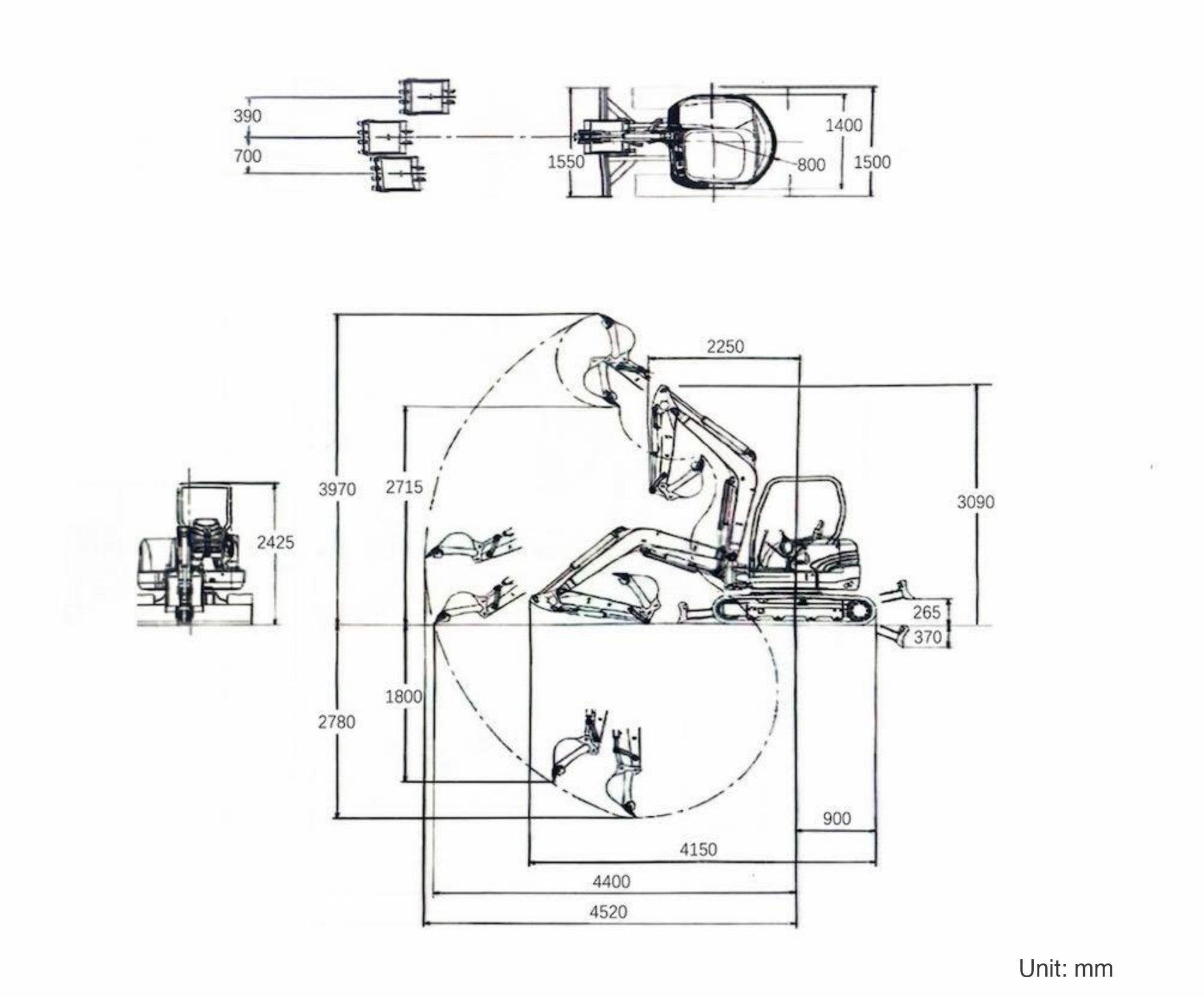

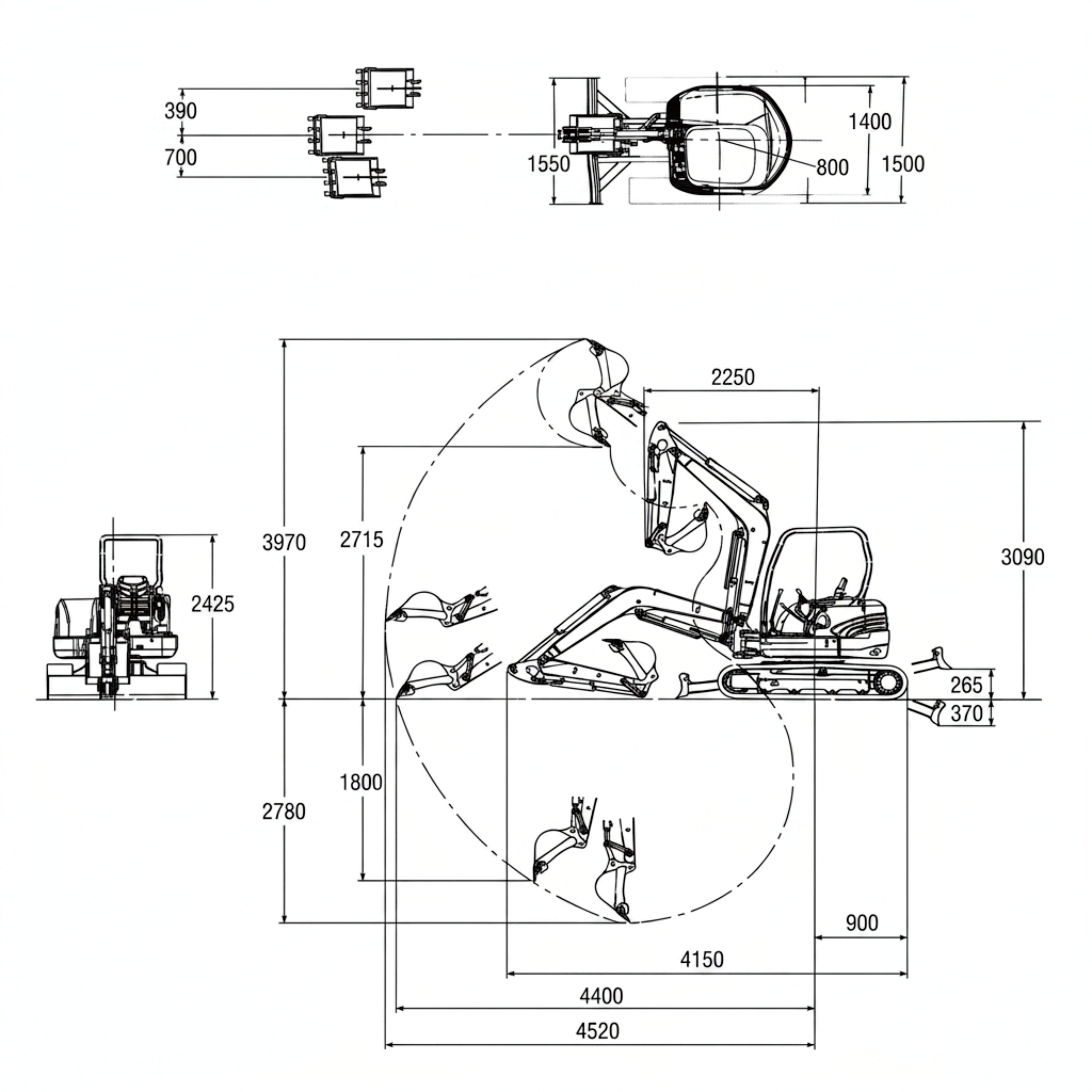

Working Range
| Item | Unit | Value |
|---|---|---|
| Maximum digging height | mm | 3970 |
| Maximum dumping height | mm | 2715 |
| Maximum digging depth | mm | 2780 |
| Maximum vertical digging depth | mm | 1800 |
| Maximum digging radius | mm | 4520 |
| Maximum ground-level digging radius | mm | 4400 |
| Minimum front swing radius | mm | 2250 |
| Swing centre to track rear end | mm | 900 |
| Dozer blade width | mm | 1550 |
| Dozer blade height | mm | 330 |
| Maximum dozer lift height | mm | 265 |
| Maximum dozer digging depth | mm | 370 |
