OULIDE SL40-6P Mini Excavator - 3.5T, Kubota V1505 Diesel, 4.6m Dig Height — Flagship
$47,214.05
Your checkout price — 5% off applied automatically
Offer ends in
--Days
--Hours
--Mins
--Secs
Available in stock
Black Friday Early Access Now Live!
Extra 5% off — applied automatically in your cart and at checkout. No code needed.
Delivery cost
Fast Metro Deliveryto Metro Area
Nationwide ShippingTracked & insured
Fast DispatchWithin 1 – 3 days
30-Day ReplacementIf damaged or faulty
Trusted CouriersAllied · Hunter Express
Sydney ShowroomSilverwater, NSW
Payment & Security
Payment methods
Couldn't load pickup availability
Description
Description
Flagship 3.5 tonne OULIDE mini excavator with Kubota V1505 diesel engine. 4.6 m maximum dig height and serious bucket capacity put this machine in the upper-class compact excavator category — ideal for civil contractors, rural development and serious commercial site work.
Key Specifications
- Load Capacity / Operating Weight: 3,515 kg operating weight
- Engine: Kubota V1505 diesel
- Construction: Steel chassis
- Included: Standard bucket, manual
Technical Specifications
| Item | Unit | Value |
|---|---|---|
| Overall dimensions (L x W x H) | mm | 4485 x 1550 x 2435 |
| Operating weight | kg | 3515 |
| Bucket capacity | m³ | 0.09 |
| Engine model | - | 3TNV88F-ESSY |
| Displacement | L | 1.642 |
| Rated output | kW/rpm | 18.2 / 2200 |
| Swing speed | r/min | 8.5 |
| Travel speed | km/h | 3.0 / 4.2 |
| Boom swing angle (L/R) | ° | 70 / 50 |
| Gradeability | % (°) | 58 (30) |
| Ground pressure | kPa | 28 |
| Bucket digging force | kN | 26.5 |
| Fuel tank capacity | L | 29 |

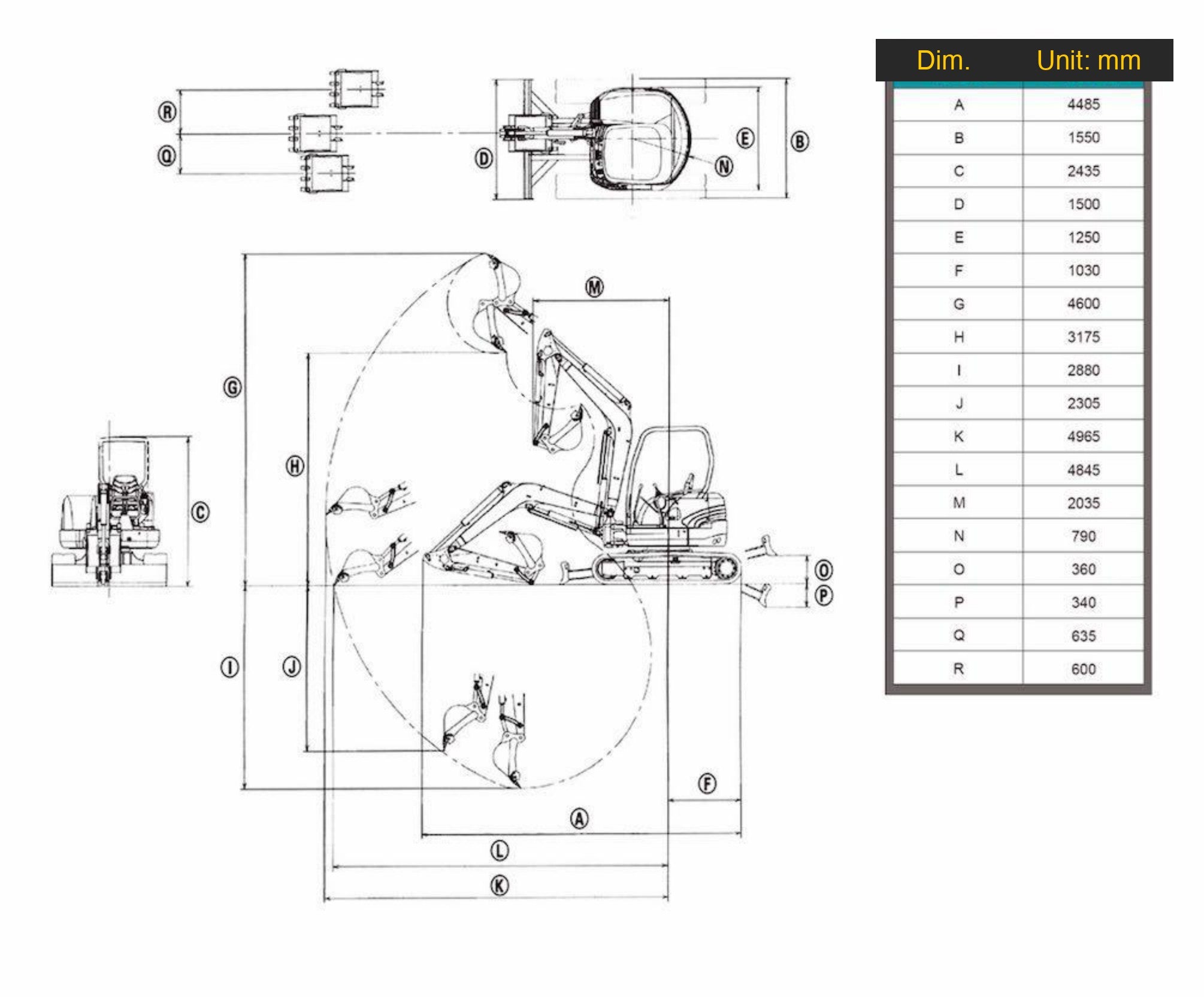

Working Range
| Item | Unit | Value |
|---|---|---|
| Maximum digging height | mm | 4600 |
| Maximum dumping height | mm | 3175 |
| Maximum digging depth | mm | 2880 |
| Maximum vertical digging depth | mm | 2305 |
| Maximum digging radius | mm | 4965 |
| Maximum ground-level digging radius | mm | 4845 |
| Minimum front swing radius | mm | 2035 |
| Swing centre to track rear end | mm | 1030 |
| Dozer blade width | mm | 1550 |
| Dozer blade height | mm | 335 |
| Maximum dozer lift height | mm | 360 |
| Maximum dozer digging depth | mm | 340 |
Specifications
- Motor Power
- Kubota V1505 diesel
